How to get a table of Peak Flows and Peak Stages for Unsteady Simulations

Written by Chris Goodell, P.E., D. WRE | WEST Consultants
Copyright © RASModel.com. 2012. All rights reserved.

This is a common question.  It’s often desirable to have a table of timing for peak stages and flows for dam breach models.  This allows you to track the arrival of the flood wave at all locations downstream of the dam.  However, the typical output plots in HEC-RAS are not very helpful in providing this information.  You could look at each cross section’s stage and flow hydrograph, and pick off the time for the peaks, but this can be very tedious and time-consuming.  There is a much faster way to get this information using the DSS Viewer in HEC-RAS.

Go to the DSS viewer on the main RAS window.
Once there, filter the records as follows by clicking in the blank cell at the top of each column and selecting what you want to see from the dropdown box:

Part A: Select the Reach you want to look at
Part B: Leave Blank
Part C: Select LOCATION-TIME
Part D: Leave Blank
Part E: Select MAX STAGE or MAX FLOW
Part F: Select the Plan you want to view.

Once you have the record you’re interested in, double click it in the filter table so that it is brought down to the list box at the bottom. Then highlight the record in the list box and click “Plot/Tabulate Selected Pathname(s). You should see a graph that plots out the Simulation Time for Max Flow or Stage for every cross section in the selected reach.

For peak stage…


For peak flow…

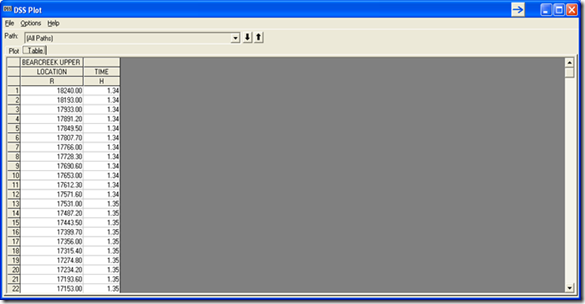

Within the DSS Plot window, select the “Table” tab to see tabular output.

10 comments:

  1. Wow, I think that answers everything.

    ReplyDelete
  2. hi,
    your comment is wonderful..

    hm... i have a question..
    how do you calculate a wave celerity in HEC-RAS? or by hand??

    ReplyDelete
    Replies
    1. Hi Jungbum-

      you can get an overall reach wave speed (wave celerity + velocity) by taking the reach length and dividing by the travel time as determined by the method described in the blog post above. If you would like to determine a discrete, localized wave celerity, you can retrieve the hydraulic depth from the profile output table and compute it by (g*d)^0.5 (square root of gravity times hydraulic depth). Then add velocity (also from the profile table) to that to get wave speed.

      Hope this helps. Best of luck.

      Chris

      Delete
  3. I'm interested in getting the max velocity at all bridge locations in the model. Any advice on how to do that would be appreciated.

    ReplyDelete
    Replies
    1. I don't think you can get max velocity from the dss file. However, you could get the velocity plots out of the RAS general profile plot for each profile. Copy to Excel. Then in Excel, filter out everything other than the bridges. Then select all velocities for each bridge and set a cell equal to the max value of the selection. (i.e. =MAX(D2:D13)"

      Delete
  4. i would like to get flood time arrival to get the time lag downstream of a dam so that people can be removed from danger area after dam breaches

    ReplyDelete
  5. It looks like HecRas i showing the lowest cellvalue as upstream HW. Maximum HW can be much higher. Is this true?

    ReplyDelete
    Replies
    1. Not sure. If you figure it out please share.

      Delete
  6. vc sharma (vcsharma.iirs@gmail.com)November 10, 2017 at 2:59 AM

    Can anyone, please explain me about the physical process of 1D unsteady flow modeling in HECRAS (how the model is calculating depth, time and velocity). Because referring manual is taking long time to me or else suggest me any presentation or document which explains briefly.(mail id attached with my name)
