HEC-RAS Model with 2D Mesh Only.

Written by Christopher Goodell, P.E., D.WRE
Copyright © The RAS Solution 2015.  All rights reserved.

There have been many questions lately about whether HEC-RAS 5.0 can perform a simulation with ONLY a 2D mesh (i.e. no cross sections).  The answer is yes.  In fact, in many ways it’s a lot easier.  In this example, the standard Muncie project offered by the Hydrologic Engineering Center has been converted first to SI units, then to a single 2D mesh.  To keep things simple, the levee breach was removed and flow moving into the overbank areas is purely due to overtopping of the levee.  The following figure presents the geometry file for Muncie when modeled with a single 2D area.



Once you’ve drawn your 2D area boundary and have assigned a mesh cell center spacing (DX and DY) and Manning’s roughness value(s), really all that is left is to
assign boundary conditions at the upstream and downstream ends using 2D Area BC Lines.  These were placed at the same location as the upstream and downstream cross sections from the original model.
The easiest way to set initial conditions is to just apply a single starting water surface elevation for the entire domain, [or start the 2D area out dry].  This will not always work, especially if there is significant changes in water surface elevation throughout the 2D area.  But in this case it worked, with a little help from the Initial Conditions Ramp-Up option in the Unsteady Computation Options and Tolerances window.  I used a ramp-up time of 4 hours to set the model up with a more appropriate initial conditions solution.


In the 2D mesh, you’ll also notice I’ve added some refinement to the initial 40m x 40m cell center spacing to better capture the geometry along the levee and to minimize inundation fragmentation.
Notice in this figure I’ve oriented some additional cell centers to try to align the cell faces with the high ground just to the southwest of the main channel.  This helps to prevent “leaking” through the high ground, which occurs when a cell is large enough to straddle the high ground feature. [orientation of cell faces along high ground features can now be done in the latest version of HEC-RAS quite easily with breaklines]

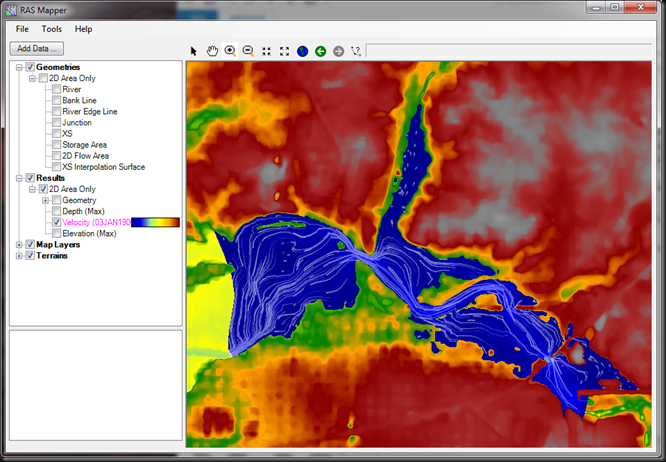

As shown in this figure, I added some resolution and strategic cell center orientation to minimize inundation fragmentation.  A lot more of this could be done with this data set to completely eliminate fragmentation.

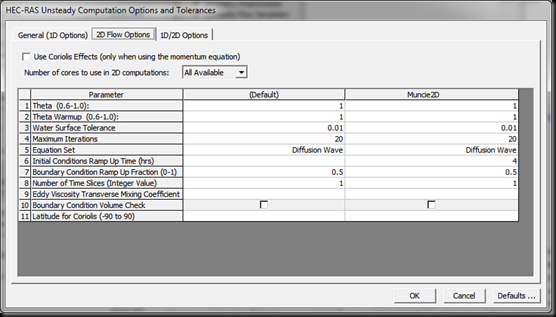

Over 2 days of simulation time with a 10 second computation interval and 40 m x 40 m initial cell size ran rather quickly at around 2.5 minutes on my computer.


This sample data set is available from The RAS Solution Google Drive site at:
https://drive.google.com/file/d/0B0bpiyLiUeRXMHhZVU9ibm5faUk/view?usp=sharing

I didn't include the output files, so make sure to run the simulation first.

Please note that this data set is completely fictional and represents no real flood event-past, present, or future.  This data set was originally developed by the Hydrologic Engineering Center and modified by me.  It is meant strictly for demonstration purposes.  Enjoy!

176 comments:

  1. Excellent article, Chris!
    Robert

    ReplyDelete
  2. When will HEC-RAS 5.0 Full Version come out?

    ReplyDelete
    Replies
    1. Latest Intel says end of February. I make no guarantees!

      Delete
  3. Error with program: RasUnsteady64.exe Exit Code = -1073740940
    This is what I get when following your steps on a project I'm working on. Any suggestions as a fix?

    ReplyDelete
    Replies
    1. Unfortunately that error message doesn't reveal much. I would check to cells, especially around the boundary, for cell/mesh violations. Things like cells with more than one center, cells with more than one exterior face, cells with no centers, cells with more than 8 sides, etc.

      Delete
  4. Hi Chris,

    What would you suggest as alternatives to setting the initial condition in reaches where change in elevation is much greater?

    ReplyDelete
    Replies
    1. You can explore using a restart (hotstart) initial conditions file. This requires you to run a "hotstart" simulation first to create your hotstart initial conditions file. Given that, I would be more inclined to use a ramp-up time instead.

      Delete
  5. Dear Cris,
    I wanted to run your model but it was cut off at the half during unsteady flow simulation although writing geometry info and geometry processor were both completed.
    It says +STOP! Error in the time window
    Unsteady flow encountered an error
    Writing results to DSS

    ReplyDelete
    Replies
    1. Please make sure that your Windows Laguage and Regional settings are to English (United States). That should fix it.

      Delete
  6. Thanks much for the articles about HEC-RAS 5.0. Very interesting and helpful.

    My question: Have you had any trouble loading Web Imagery? I am getting the following error:

    Error loading image from file: 'C:\Program Files (x86)\HEC...GDAL\Web map Services\Google Satellite.xml' Dataset:C\Users...AppData\Local\Temp\HEC_RAS_IMAGES\CroppedPicture...tif' could not be opened.

    ReplyDelete
    Replies
    1. The only times I've had issues with loading web imagery have been when:
      1. Projection issues. Either I've forgotten to first load a projection file (Tools...Set Projection for Project) or there is some inconsistency between my geometry data and the projection I've established. Or...
      2. My internet connection was not established.

      Otherwise, it works very well.

      Delete
    2. What version of ArcGIS are you using? I am using 10.1 but I have the former library of ArcGIS10.0 ".prj" files, which I placed in the following folder:
      C:\Program Files (x86)\ArcGIS\Coordinate Systems\Projected Coordinate Systems
      ...but still get error when I try to load images

      Delete
    3. We've used both, and other software like QGIS as well. Not sure what the problem could be. Sorry. I'll ask around.

      Delete
  7. Hello.

    I have downloaded the project, but when I want to run it, I have the next error:

    HEC-RAS Error - Incomplete data, the following errors were found:
    2D Flow Area: 'Muncie2D' has external boundary conditions 'BCLine: Outflow Boundary' and 'BCLine: Inflow Boundary' that use the same face. Boundary conditions cannot overlap on the same mesh face.


    https://www.dropbox.com/s/u8awi6d6x51474n/error_boundary.png?dl=0

    Regards.

    ReplyDelete
    Replies
    1. I just downloaded, unzipped it and ran it with no problems. You must have made some change before running it. Somehow, the outflow and inflow BC Lines are now in the same place. You can either redownload the project again and rerun it, or you can just put the BC Lines back where they should be. See the "Outflow Boundary" and "Inflow Boundary" on the first figure above. Please respond back and let us know how you resolve this. Thanks.

      Delete
    2. I'm getting the same error with my own project. Boundary conditions are clearly shown at upstream and downstream ends and are not on the same face. Tried deleting and redrawing and still get the same error. Anyone know of a possible cause/solution?

      Delete
    3. Ian. It is a bug in the March version of 5.0. In my experience this has only come up when using SI units. In any case, this bug has been fixed for the next release. While we wait for that to come out, you can bypass this error by unchecking "Check Data Before Execution" which is in the Options menu item in the unsteady flow analysis window.

      Delete
  8. Hello Chris.

    Thank you for your answer.

    I'm afraid I didn't change anything (at least consciously). I have upload it.

    https://www.dropbox.com/s/ow6a3er2wvr3txi/Muncie2DOnly_2015_03_07_SI.rar?dl=0

    It seems like I can't have the inflow and outflow boundaries in the same 2D-Storage area.

    I use the version the version beta 2015-02-09 HEC-RAS 5.0 and windows 8.1 in Spanish (but language format English US).

    Regards

    ReplyDelete
    Replies
    1. Ok. Try the October 2014 beta version instead. That is what I have been using. If it works in the icy version them that means something changed and might be wrong with the Feb 2015 version you have.

      Delete
  9. Hello Chris.

    I'm afraid I have the same problem. I can´t run correctly the modell with the October 2014 beta version. I will try in another Windows OS, for example, Xp (at work). I tell you, when I'll test it.

    ReplyDelete
    Replies
    1. Yes, please do let me know what you find out.

      Delete
    2. Hello Chris.

      I tried it at work (Windows 7 as OS in German language), and the model runs perfectly. So I guess the problem is with Windows 8.1 (which is in Spanish).

      Delete
    3. Good to hear. Thank you for sharing this.

      Delete
  10. Hi Chris!

    I've been trying to run a simulation with an upstream 2D mesh followed by a 1D river reach but I see the message:

    HEC-RAS Error - Incomplete data, the following errors were found:
    2D Flow Area: 'Montante2D' has external boundary conditions 'BCLine: Saída2D' and 'US XS: RS=1964' that use the same face.
    Boundary conditions cannot overlap on the same mesh face.

    I believe I've drawn the BC downstream line exactly on the first cross section, so I don't know what else this error should be pointing out. Any tips?

    Thanks a lot!

    ReplyDelete
    Replies
    1. Either you have 2 BC lines overlapping, or you the intersection between your 2D mesh and cross section have both a BC line and a cross section boundary condition applied. In short, you can't have 2 boundary conditions at the same location.

      Delete
    2. I have a BC upstream the 2D mesh (flow hydrograph), a BC downstream the 2D mesh (normal depth) and a BC downstream the 1D reach (normal depth).. Initial conditions were set up as initial elevation (2D mesh) and initial flow (upstream 1D reach) that is equal to the first flow value of the hydrograph..

      When I zoom in the first cross section I can see a millimeter offset between it and the 2D Mesh downstream boundary.. Do you think this is the problem? I'm trying to minimize it to zero, but it's kind of impossible..

      Thanks a lot!

      Delete
    3. You cannot have a BC line on the downstream end of your 2D mesh where it connects inline to cross sections. I believe that is the problem. Remove that BC line and make sure the 1D reach is connected to the 2D Area.
      Also, you don't have to have the first cross section exactly on top of the 2D boundary. Just get it close so that the conveyance distribution over the cross section is close to the conveyance distribution over the 2D edge that is connected.

      Delete
    4. Hey Chris!! Thanks a lot! I've done it this morning.. Just removed the downstream BC and it went OK!

      Delete
    5. Great! If you can, send me a video of the flood animation, I'll post it up here.

      Thanks

      Delete
  11. Chris,

    It seems to me that whe 5.0 was first announced it was more of a tool to use in place of the storage area feature of RAS. How do you see the 2d feature being utilized with the official release of the program? Is there an intended use or set of limitations for use on 2d only models?

    I am envisioning setting up a quick 2d model to help me decide how to effectively set up a 1d model at complex junctions or flood plains. I see it giving me a solid basis for where/how to cut cross sections. Or maybe it takes place of the 1d model completely? I'm just thinking out loud at this point...

    Thanks for the great posts.

    ReplyDelete
    Replies
    1. Actually 2D has been planned for RAS for some time now. It's not just a tool to use in place of storage areas, although that is one inteneded use. It's more about adding the functionality of using 2D to model areas that just can't be (or shouldn't be) done in 1D. To your second point, if you go to the effort of setting up a 2D area, I'd just use that instead. Unless you want to use the output plots specific to cross sections.

      Thanks, and good luck!

      Delete
    2. Thanks Chris! Do you know of any good documentation showing how RAS 2D compares to some of the other popular 2D models?

      My biggest problem would be convincing the client that a pure RAS 2D model is trustworthy. You know how a lot of engineers can get caught up with "standards". It can be tough to break through some times. RAS 5.0 offers some unique opportunities though, being from such a reputable source. And of course it doesn't hurt that its free!

      Delete
  12. chris good day. can only be performed in the simulation area 2d stretch of a river regardless floodplains? project since my college thesis Floodplains not overflow and the water only stays in the stretch of the river and let me know if I can get results only from this area 2d creating computational mesh only the river.

    thank you very much

    ReplyDelete
    Replies
    1. Hi Chris, I have the same problem of "Anonymous"...
      After some good working simulations, suddenly I have this error :
      "2D Flow Area: 'Prova' has external boundary conditions 'BCLine: cond_monte' and 'BCLine: cond_valle' that use the same face. Boundary conditions cannot overlap on the same mesh face".
      I didn't change the Boundary Conditions, but the only variation that occured was the update (automatic) of the Antivirus and my Windows(vers. 7 Home Premium).
      Now, I can't continue my simulation (I tried also with another pc- Windows vers.8, but I have the same problem).
      How could I solve?
      Help me, please.
      Thanks

      Delete
  13. Hi Chris, I have the same problem of "Anonymous - March 6, 2015"...
    After some good working simulations, suddenly I have this error :
    "2D Flow Area: 'Prova' has external boundary conditions 'BCLine: cond_monte' and 'BCLine: cond_valle' that use the same face. Boundary conditions cannot overlap on the same mesh face".
    I didn't change the Boundary Conditions, but the only variation that occured was the update (automatic) of the Antivirus and my Windows(vers.7 Home Premium).
    Now, I can't continue my simulation (I tried also with another pc but I have the same problem).
    How could I solve?
    Help me, please.
    Thanks

    ReplyDelete
    Replies
    1. I think this might be a bug. Send me an email and I'll see if I can help.
      Chris

      Delete
    2. Thanks to a tip by Rob, you can bypass this buggy error message by unchecking "Check Data Before Execution".

      Delete
  14. Hi Chris, i've experienced the same problem with overlapping BC lines in March 22 version while i was studying with the 2D only domain. But once i tried to run the same model in the october version, there is no problem. Although it has some key improvements like drawing breaklines and manning's n regions through the geometry editor, the March-22-2015 version needs to be checked in that regard.

    ReplyDelete
    Replies
    1. Thanks to a tip by Rob, you can bypass this buggy error message by unchecking "Check Data Before Execution".

      Delete
  15. Hi Chris, after I run the 2D simulation, can I cut cross sections to see the results?

    ReplyDelete
  16. Hi Feng. Not yet, but I'm hopeful that a feature like this will be included in the optician release.

    ReplyDelete
    Replies
    1. Hi Chris I have another question. In 2D only simulation how can I choose different terrains. For example I want to run existing Terrain and Project terrain in 2D only model I only have to make 2D mesh and flow is I make different terrain layers how can I choose

      Delete
    2. Feng- Make a copy of your geometry file. One will be for the existing terrain, one for the project terrain. Each geometry file will be in its own plan.

      Delete
  17. There have been a number of issues in the March version with 2D area connections and the weir or weir breach being "lower than the cells they are connected to" when that is actually not the case. This bug seems to be more prevalent when using SI units. I've found that 2D area connections inside of 2D areas don't have the same problems. Hopefully this will be resolved when HEC releases the official 5.0 version.

    ReplyDelete
  18. Hello Chris!

    I have basically the same issue with a weir connecting two 2D areas. I changed to US units in order to avoid the error and it worked well for one case, but at the next model it reappeared.

    Actually I've planned to use HEC-RAS 5.0 for my master thesis but since it seems to me that the actual beta version is still not working for my problems I might discard that idea.
    Any idea when the official Version will be released? Or is there another beta version coming out?

    Best regards

    Sebastian

    ReplyDelete
    Replies
    1. Sebastian-I expect the official 5.0 version will be out by the end of the summer-but no guarantees.

      Delete
  19. Hi,

    I've set up a 2d model with no 1d elements to evaluate the performance of a weir across a channel diverting water to a side channel. I've drawn boundary lines in the following locations: 1 in the main channel upstream of the diversion, 1 in the main channel downstream of the diversion, and 1 in the side channel downstream of the diversion. When I try to assign boundary conditions in the unsteady flow dialogue box, the program will only allow me to enter a boundary condition for one of the downstream conditions. When I select the other downstream boundary line, none of the boundary condition options are available. When I model with 1 boundary condition (normal depth) crossing both the main channel and side channel, the model works, but is not accurate as the downstream slope in the channels is significantly different. Has anyone encountered this? It seems from the associated tutorial, it is possible to enter multiple boundary conditions, but I can't figure out how to make it work.

    Also, does anyone know when the full version of 5.0 will be released? I assume there will be manuals associated with it similar to hecras1d. The tutorial provided with the beta version is very helpful but seems to be geared toward 2d/1d combo modeling.

    Thanks in advance.

    Ty

    ReplyDelete
  20. Also, my models seem to be working ok and I'm able to map depth and elevation in the ras mapper output but I'm unable map velocities or flows. Is this a problem with my model, or have they disabled these features in the beta version?

    ReplyDelete
    Replies
    1. Ty-
      Are you using the March 2015 version? If not, try it: Here is the link to the latest version:

      https://drive.google.com/file/d/0B57QUvyA_BsYZkZILUFXMGJsdUE/view?usp=sharing

      This link lets you download a self extracting archive file called "HEC-RAS_5.0_Beta_2014-10-01.exe"

      Download the file to a separate directory and run the self extracting archive file. The self extracting archive file contains:

      1). The installation setup package called: " HEC-RAS_5.0_Beta_2015-03-20_Setup.exe"

      2). A updated PDF version of the User's Manual called "2D Modeling with HEC-RAS 50_Draft.pdf"

      3). Two 2D Test Data sets in a directory called "RAS_50 Test Data"

      Delete
  21. Hi Chris,

    I've also been unable to export velocity grids from RASMapper using 5.0. To get around this we thought we'd do some post processing of the data in HDF5 file to derive these grids ourselves. Thinking that the cell velocity displayed in RASMapper is an average of the velocity across that cell, we've tried calculating this value by averaging the X & Y point velocities for given cell. We're able to 'sort of' get a similar value but unable to replicate them exactly.

    Would you happen to know how the velocities displayed in RASMapper are calculated and on what data it is based?

    ReplyDelete
    Replies
    1. Sorry about the delayed response. Velocities (x and y) are computed at the cell face points. I believe the cell velocity used for the velocity grid is the resultant velocity for all of the face point velocity vectors for that cell. Not 100% though.

      Delete
  22. Oh, and one more thing in connection with my latest comment: the simulation goes without any error, but in the velocity profile view, the max profile gives a look, which can't be found during the animation. I'd ran the simulation on two different computers, both with the october beta, but same solution.

    ReplyDelete
    Replies
    1. The max ws profile is not a true profile, in the sense that it is not associated with a specific date/time. It is an aggragate of all of the maximum water surface elevations that occured at each location during the simulation, regardless of when they happened. The max ws profile is what is typically used for flood inundation maps.

      Delete
    2. I see, it's clear, I had some thoughts, that this could be the reason, but I had to be sure, thanks!

      Have You read my comment before that? About that I have a simulation, which worked properly, without errors, but if I add flow, or depth times velocity profiles, the animation shows nothing. I tried it with the test projects, but it worked the same way. I'm using the october beta, but I read here, for a commenter named Ty, You've shared a 2015-03 beta, but that googledrive link is now deleted, and the sidebar link only allows the 2104-10 beta to download. Is it possible to share it again? It would be great!
      Regards
      G

      Delete
    3. This comment has been removed by the author.

      Delete
  23. amongergely@gmail.com and thanks gratefully!

    ReplyDelete
  24. Hello
    I am Colombian.
    I do not speak English
    I want to know the procedure to load the mesh geometry or 2D, to generate the 2D area tells me that no cell / mesh. I appreciate your help or can send me a link to your procedure. I hope you understand me.
    Thank you

    ReplyDelete
    Replies
    1. Please read the manual. It does a good job explaining the procedure.

      Delete
    2. i also face the same problem..using HEC-RAS 5.0.3. when i put value for spacing DX and DY, it shows "Current mesh contains no computation points. is it problem with my terrain/coordinate or else..

      Delete
    3. It could be, but I dont know for sure. Maybe try some different cell center spacings. And make sure your 2D area doesn't have sharp angles and narrow protrusions. Those tend to create cell violations.

      Delete
  25. Hi Chris!

    I'm a constant visitor of http://hecrasmodel.blogspot.com, especially if I need to be enlightened about setting up HEC RAS.

    Lately, I've been testing the pure 2D functionality of HEC RAS 5.0 (8/21/2015 version). I'm testing how it would perform if I'm using terrain data of varying spatial resolutions.

    I would like to ask regarding the algorithm used by RasMapper when computing depths. I noticed that I can compute a depth grid using a terrain file that is different from the one I used during the simulation.

    For example, i did a 2d simulation using a 30-m resolution terrain, and I was also able to have the dynamic flood depth maps using the same 30-m resolution (i.e., "Raster with Associated Terrain").

    But by exploring the "Manage Results Maps.." functionality of Ras Mapper, I found that it is possible to compute for the flood depth maps using a more detailed Terrain (i.e., 1-m spatial resolution).

    I'm now interested on how does RasMapper computes for flood depths using a finer Terrain even though the simulation was done using a coarser terrain.

    Thanks and regards,

    -- Jene

    ReplyDelete
    Replies
    1. Thanks for visiting the RAS Solution. Glad you are finding it useful. It’s funny, I just recently asked the same question to Gary Brunner at HEC. He said that indeed you can use a different terrain for mapping (i.e. your results layer) versus computations. However, using a different Terrain for mapping does not change the computed results. It simply takes the computed results (i.e. stages) that are based on the original Terrain and projects them onto the new Terrain. A more refined Terrain should make the depth grid look more detailed, but keep in mind, the stages will still be based on the old, less refined Terrain.

      Delete
  26. Hello Chris.

    I´ve been visiting the blog for quite a while, but I haven´t had the opportunity to write something. But now I´m doing it because I´m experiencing stability problems with a coupled 1D/2D model I have been working on for a few weeks. It is located at a watershed in Chile. Since I have done everything posted here in order to increase the stability of the model without having any good result, I wanted to ask you if it is possible to send you the files so you can see them and tell me any tip or suggestion that could help me with this.
    I appreciate your attention.

    All the best,
    Camilo

    ReplyDelete
    Replies
    1. Hi Camilo, yes, please send me your files and I'll see what I can do.

      Chris

      Delete
    2. Thanks a lot Chris for your answer. In the following link you can find the HEC RAS project. The one that I´m using is called Temuco, because that is the city in CHile that I´m trying to model (Imperial river). It is in UTM wgs84_18s projection and SI units.
      Hope you can help me with it. Thanks a lot!!!

      https://www.dropbox.com/s/9v0dzu590j9i0lo/HEC-RAS_Camilo_Chile.rar?dl=0

      Delete
    3. Hi Chris. I sent you the files as a reply in a dropbox link. Did you receive it? If not, here it is again.
      Best regards!

      https://www.dropbox.com/s/9v0dzu590j9i0lo/HEC-RAS_Camilo_Chile.rar?dl=0

      Delete
    4. I have them and I am looking now...

      Delete
    5. I need your projection file "CoberturaUTM_2.prj before I can proceed.

      Delete
    6. Off course! Here it is:
      https://www.dropbox.com/s/glhneh500lf0q4n/Shapefile.rar?dl=0

      Delete
    7. Here are some things I did to get your model to work.
      https://drive.google.com/file/d/0B0bpiyLiUeRXQVh6OUwxN1cxd3M/view?usp=sharing

      Good luck!

      Delete
    8. Thanks a lot Chris. I really appreciate it! I will take a look to the files. Meanwhile I made a full 2D version of the model and it worked without any complain. But I find it very useful to learn about 1D/2D models as well. Thanks again and I´ll get in touch again.
      All the best.
      Camilo

      Delete
  27. Hi Chris,

    Is there a way to export or see hydrograph at the downstream side BCline in RAS2D model?

    Thanks and regards,

    Hongyu

    ReplyDelete
  28. I see that a lot when there's a problem with an inline connection. Are you doing a single 2D area? Multiple 2D areas, 2D and 1D? If there is a connection at the "wall", make sure it is really connected. If it is a single 2D area and there truly is a "mound" of terrain blocking flow, read this and see if it helps: http://hecrasmodel.blogspot.com/2015/06/lifting-terrain-in-hec-ras-50.html Although this post is about lifting terrain, the same process can work for lowering terrain to the active creek channel.

    ReplyDelete
  29. Youre welcome! If you don't have cross sections to use to create a cross section terrain for merging with the overall terrain, you will have to remove the bridge remnant from the terrain manually in GIS.

    ReplyDelete
  30. I set an initial water surface elevation for the 2D area and then 4 hours of ramp up (initial conditions) time.

    ReplyDelete
  31. Hi Chris - great article! I'm very familiar with 1D but trying to make the jump to 2D. I tried running a 2D model of my own (with my own surface, etc) but I keep getting strange results. My upstream BC is a flow hydrograph, 100 days, with flows ranging from 10 cfs up to 500 cfs. When I run the simulation I get convergence errors but the model still runs. The end results give channel depths thousands of feet deep and extremely high velocities on the leading edge when it "wets" the dry cells at upstream end. Any thoughts on what might be causing this? I've tried everything and am pulling my hair out now!

    ReplyDelete
    Replies
    1. Thanks! Sounds like instabilities. They can result from any number of things. Typical culprits are too large cell size, too large computation interval. Make sure you are keeping your Courant number close to 1.

      Delete
  32. Hi Chris - Great article. I'm very familiar with 1D HEC-RAS but am trying to make the jump to 2D. I used my own data set (terrain, hydrograph at upstream BC and normal depth at downstream BC...very similar to this example) and everything seems fine but when I run the simulation I get convergence errors and water depths in the channel modeled to be thousands of feet deep! This is for flows ranging from 5 cfs up to 500 cfs with a channel ~100' wide. When the flow enters from upstream and wets the dry cells, also the leading edge of the flow is modeled with extreme velocities. I've tried adjusting all I can think of and nothing seems to work. Any clue what is going on? Thanks! - Eric

    ReplyDelete
  33. Daniel, I imagine that going from 20 to 5 for your cell size is different mostly because of where your cell faces end up. I suggest looking at your 20 m mesh and look for areas where water leaks through high ground features or other barriers to flow. Make sure that your cell faces align to those features by using breaklines. Time steps (also called computation interval) can be found in the unsteady flow analysis window. I'm not going to have time to look at any projects for a couple of weeks at least, but if you still are having issues after then, check back with me. Good luck-
    Chris

    ReplyDelete
  34. Hi Chris
    I am running a fully 2D stream model. In this project the flow changes along the reach. I tried to create two storage areas (one for the US area and one for the DS area), so I could put a new BC in the middle of the reach. However, a boundary condition and a connection canNOT share the same cell face. Could you help me to find a way to put a hydrograph inside my 2D area? Maybe there is a way to put an internal condition.
    Hope you can help me with it. Thanks a lot.

    ReplyDelete
    Replies
    1. In the current version RAS does not have a way to put an internal flow hydrograph in a 2D area. You might try putting a "slot" in your 2D area perimeter as a way around this limitation.

      Delete
  35. I'm trying to find a way to figure out the max flow across an arbitrary internal line in a 2D area. Alejandro Sanchez at the HEC suggested I "compute approximate fluxes by getting the velocities and water levels at the faces". I installed HDFView and browsed to ????.p01.hdf:/Results/Unsteady/Output Blocks/Base Output/Summary/2D Flow Areas/Wash 1/Maximum Face Velocity. I right-clicked and looked Properties to see that Row 0 is velocity in ft/s and Row 1 is Time in Days. I found the velocity for a Face of interest. But the face belongs to two cells, each of whom have a different water surface. How do I get the appropriate water surface at the face to calculate the flux/flow? Do I simply straight-grade between the centroids of the two adjacent cells to the face?

    All this hints at a general question that I am not finding answered anywhere yet. If cells have a single water surface for computation purposes, how are the differing water surfaces resolved at faces? Or am I misunderstanding, and it is faces that have a level water surface for computation purposes?

    ReplyDelete
    Replies
    1. Thomas- It's easy to do, just add a profile line (Version 5.0.3) on your map anywhere. Once you add the profile line, you can right click on it and get flow flux across it. You can also use a SA/2D area connection (what we did before version 5.0.3). http://hecrasmodel.blogspot.com/2015/09/transect-for-extracting-flow-in-2d-area.html

      To get a little bit into the theory, RAS calculates velocity at face points during the computations by using a staggered grid (called the dual grid). The face points are the center points of the cells in the dual grid. Velcities are determined during the matrix inversion and not back-computed from water surface elevations as you are trying to do. The velocity you see at a face is simply the resultant velocity from the two face points on either side of the face. You might read through the theory section in the manual if you want more information on this. However, with the profile lines, or SA/2D Area connection, you should be able to easily get max flow across an arbitrary internal line. Good luck!
      Chris

      Delete
    2. Thanks on both questions. I didn't see part A soon enough, but I eventually discovered it another way. Part B is very helpful. I am really enjoying the 2D capability.

      Delete
  36. Hello Chris,
    I run the unsteady flow with hec-ras 5.3, using a new terrain (XS data with existing terrain. It could not run and alway alert as follows: Computing 2D Flow Area 'Floodplain' tables: Property tables do not exist. Error completing geometry for computations: Unable to compute face tables. The terrain associated with this geometry does not completely cover the 2D Flow Area 'Floodplain'. I would appreciate, if you could provide any direction and advice. Khem

    ReplyDelete
    Replies
    1. Make sure your 2D area(s) does not extend beyond the spatial limits of your terrain. Also, make sure that you have associated a terrain with your geometry.

      Delete
  37. Hi Chris,

    I'm looking for a way to define different areas(polygons) of varying cell size within the same 2D-area. So far I've only been able to define varying cell sizes along breaklines.

    Online I found a statement:

    "Currently the HEC-RAS 5.0 mesh generation tools are somewhat
    limited, but by applying 2D coastal modeling mesh development
    techniques, the 2D geometry file can be manipulated to allow for
    variable cell sizes within the computational mesh".

    http://www.gafloods.org/pdf/2016/SpringConference/magnolia/03242016%20Managing%20Flood%20Risk%20with%20HEC-RAS%205%20thru%20Case%20Studies.pdf

    I haven't found a way to "apply 2D coastal modeling mesh development
    techniques". Do you have any suggestions?

    Thanks! //Alexander

    ReplyDelete
    Replies
    1. I would check with Dewberry and see how they did that. I'm guessing they used a third-party mesh development application, then just copied the cell center coordinates into the RAS 2D Area editor.

      Delete
  38. Hi Chris,
    it is a nice work.

    Can we get a results table showing us how much higher the water level in the cells as well as data on the flow in the cells and the amount of flow inside and outside of the cell.or just have this simulation map.

    ReplyDelete
    Replies
    1. Thanks. I would try using profile lines to extract data from cells inside the 2D area. Also, you can get into the HDF file using an HDF Viewer if you want to see all of the numbers for every cell. Finally, there's a good real-time query in RAS Mapper. You can click on any cell and get information in time series.

      Delete
  39. Hi Chris, how are you? I'm a new user of HEC-RAS 5.03, and I want, first of all, to thank you. Your posts and explanations here are very very usefull!. Well, backing to my problem: I have been trying to run a dam break using only a storage area conected to a 2D mesh area trhough a "SA/2D Area conection". When I run my simulation, totaly in 2D, a lot of messages apear in "Computation Messages" Box. And I'm don't know how to interpret them, especially the "1D/2D flow error". This "flow error" is a numerical error? What is the unit of this error?. Could you help me in this case? The messages are something like below. Just to say, "barrag3" is the name of my Dam. Thank you! Arthur Tschiedel

    "29OCT2016 00:28:46 1D/2D Flow error -10. barrag3
    29OCT2016 00:28:47 SA 7 538.37 0.410
    29OCT2016 00:28:47 SA 7 538.05 0.107
    29OCT2016 00:28:47 1D/2D Flow error 123. barrag3
    29OCT2016 00:28:47 1D/2D Flow error -10. barrag3
    29OCT2016 00:28:48 SA 7 538.36 0.409
    29OCT2016 00:28:48 SA 7 538.05 0.106
    29OCT2016 00:28:48 1D/2D Flow error 123. barrag3
    29OCT2016 00:28:48 1D/2D Flow error -10. barrag3
    29OCT2016 00:28:49 SA 7 538.36 0.407
    29OCT2016 00:28:49 SA 7 538.05 0.106

    ReplyDelete
  40. Hi Arthur. The flow error messages are where HEC-RAS is trying to balance the flow computed through the SA/2D area connection with the flow computed in the cells adjacent to the SA/2D area connection. It's in units of discharge (m^3/s). The fact that it says 1D/2D flow error is a mistype in the software, it should say SA/2D Connection to 2D area flow error instead. Anyway, increasing the number of 1D/2D Maximum Iterations should help to reduce or eliminate these errors (from the unsteady flow analysis window, Options, Calculation Options and Tolerances, 1D/2D Options tab).

    ReplyDelete
  41. Hello . Please I have a concern regarding the calibration and validation of the 2D model with hec-ras. How do I know that my model reflects reality? think to answer me

    ReplyDelete
    Replies
    1. The more calibration you do, the more confidence you have that it reflects reality. But remember the famous quote by Dr. George Box: "All models are wrong. Some are useful." Doing sensitivity analyses can help you to understand the uncertainty in your results. Doing a probabilistic analysis can help you to quantify the uncertainty in the results.

      Delete
  42. Hi Cris

    Is the modelation with only a mesh as accurate as with a mesh and sections? If I decide to do it with both mesh and sections, will I have to asing the hydrograph and the normal depth to both downstream-upstream BC lines and downstream-upstream sections?

    ReplyDelete
    Replies
    1. The accuracy of the model is dependent on how you set it up, what input parameters you use, and if whether or not you've calibrated your model. If you have inline connections to 2D areas, you only need to assign boundary conditions to the upstream and downstream extents of your model.

      Delete
  43. Hello Chris. Please see how the simulated flow can be visualized by a model in ras mapper.thank to answer me.

    ReplyDelete
  44. Hi Chris,

    first of all, thank you so much for your hints. I would like to ask you if I can use a break line to model the river channel. Thanks a lot.

    Antonio.

    ReplyDelete
    Replies
    1. While it is not required, yes you can do that. It's helpful to do this to make sure you have enough cells across a major conveyance, like the river channel.

      Delete
  45. Hi Chris,

    I am currently working on a project combining 1D and 2D simulation and I'm facing an issue I can't solve...
    When I'm done drawing my 2D Flow Area, I then specify the size of the cells (40m x 40m for now) and then I have this message popping in the lower left corner of the screen saying : "Mesh 'name of my mesh' : FATAL ERROR : 1 face errors detected on the perimeter of the mesh."

    I tried to delete the area and draw it again but still... Also I tried to identify the corrupted cell and erase it but it seems that as soon as I delete it, the problem then spreads to the surrounding cells...

    I'd like to know what you think about it,
    Thanks a lot in advance
    Victor

    ReplyDelete
    Replies
    1. Try making the perimeter of your 2D area (especially around the corrupted cell) smooth, avoiding sharp angles and narrow protrusions. You may also experiment with slightly different cells sizes and see if that helps.

      Delete
    2. Thanks for your help, everything seems to work now !

      Delete
  46. Hi Chris, Is it possible to run a steady flow model with Mesh only without cross section of the channel? If, possible then how can i put the boundary condition. This is for a small seasonal river with flow of 6 cumec only! Thanks in advance!

    ReplyDelete
    Replies
    1. Yes. You still have to do it with unsteady flow, but to simulate steady flow conditions, just put in a time series of constant flows.

      Delete
    2. Thank you very much Chris for your kind reply. Now I am trying to create smaller mesh of 1mx1m but giving an error " 1 facepoint error" fatal error. Could you please tell me, how can I solve this error? And also, can I create different cell size for channel and floodplain? Thanks in advance. Regards

      Delete
    3. Sounds like a cell violation. First, scan your mesh for a "red dot". This is an indication of a cell violation. If you see this, you can either 1) add some cell center points around the affected cell to try to get rid of the violation, 2)smooth out the mesh boundary to remove any sharp angles or narrow protrusions (these things tend to cause cell violations on the boundaries) or 3) try a difference cell center spacing (try 2 meters, or 1.5 meters...just something different).

      Delete
  47. Hello Chris,

    I am using two different mesh size (4 feet for main stream and 10 feet for floodplain). In this condition, how should I decide to select the time steps for simulation considering courant number?
    Thank you.

    ReplyDelete
    Replies
    1. Use the 4 feet main channel mesh. Whenever I have varying mesh sizes and velocities, I try to hedge towards the more restrictive conditions (i.e. the one that will give the smallest time step, within reason), then I further fine tune from there.

      Delete
  48. Thank you. And I have same problem like other. I got "Error with program: RasUnsteady64.exe Exit Code = -1073740940" when I used full momentum equation for the same mesh which I used for Diffusion wave equation. There was not any error for Diffusion wave equation. Do you think this error is due to error in mesh? I have no idea what parameters to check to eliminate this error.

    ReplyDelete
  49. Thank you very much Chris. Problem solved as i was able to create the mesh for 1mx1m cell size avoiding sharp angle and following your instruction. Now about creating hots start file, is there any recommendate time frame for the length of " hot start run"?

    ReplyDelete
    Replies
    1. As long as it takes to get to the desired starting condition. It's different for every project. For smaller projects, I usually start with an hour and then adjust as necessary (based on results). For big projects I might start with a day. Really big projects, maybe a 2 or 3 days.

      Delete
  50. Hello -

    I downloaded USGS NED 1/3 arc data. When I unzipped, I do not see a .prj file? How should I proceed with using USGS elevation data into HEC_RAS. Thanks.

    ReplyDelete
    Replies
    1. I would go back to the USGS site and see if it provides information on the projection file to use. You may also have luck brownsing www.spatialreference.org.

      Delete
  51. Dear Chris,
    I work with a 1D model in which the summer bed and its floodplains are schematized with 1D profiles. I calibrated the model for a historic event. After calibration, I decided to extend the model with some embanked areas schematized with a 2D mesh. I coupled the 1D profiles with the 2D mesh with the use of a lateral structure. After this, the water levels changed while I am looking at a discharge wave that does not result in overtopping of the lateral structures. Adding the laterale structure and 2D mesh in the model schematization resulted to an increase of water depth of ~20cm at some locations. I was wondering how this might happen? Does the lateral structure result in some kind of roughness, that needs to be compensated with a lower roughness during calibration?
    Thank you in advance!

    ReplyDelete
    Replies
    1. No, the lateral structure does not add roughness to the cross section(s) it is connected to. As long as you have not altered the cross sections in any way, what you are seeing should not happen. There has to be something else. Keep searching. If you've set up two different plans, make sure the computation options in each plan are identical. An easy way to do this is to compare the plan text files in a text editor side by side. Look for differences.

      Delete
    2. Dear Chris,
      Thank you for your reply. I will look for any differences present in my plan. I have another question related to the breach settings. Is it possible to breach a lateral structure dependent on multiple triggers (e.g. multiple water levels and overtopping durations)? Thank you in advance.

      Delete
  52. Hi Chris,

    I have a question about the water surface tolerance option. I am doing a dam breach using the Full Momentum equation set and trying minimize computation time while keeping the mesh size and computation interval in an acceptable range.

    I have noticed increasing the water surface tolerance option will reduce run time. What are your thoughts on this? If using a 10x10m USGS DEM, what would you think an acceptable water surface tolerance is?

    Any other thoughts on how to improve run time without loss of accuracy/stability? Any information would be much appreciated

    Thank You!

    ReplyDelete
    Replies
    1. It's really up to you and your client on what an acceptable tolerance level is. Personally, I almost always stick with the default. But I certainly would never go above 0.1 ft / 0.03 meter. Besides accuracy, the reason for this is that when you allow larger errors to be accepted by RAS, those errors have a better chance of oscillating out of control. If you find that using a larger tolerance makes the model run faster and it is still stable, then it really boils down to what you think about the acceptable amount of error tolerance. There are so many things that can be done to improve speed. Some of the more common things are:
      Get a faster computer.
      Use larger cells. A lot of times you can really coarsen up your mesh and then use breaklines to have the resolution only where you need it. I do this a lot. The next version of RAS will be much better at allowing you to do this by providing a way to change mesh resolution with interior polygons. For now, you're stuck with breaklines.
      Larger time step. But especially with the Full Momentum, you'll want to keep your Courant numbers no more than 3, but preferably closer to 1.
      If you're seeing a lot of errors thrown out at 1D/2D interfaces, making the cells smaller around these interfaces can help. If it is a structure at the 1D/2D interface, try bumping your inline and lateral structure stability coefficients up to 3. Same thing for submergence decay exponents.
      Of course, if you have multiple cores, make sure RAS is using all available.

      Those are just a few thoughts that come to mind...

      Delete
  53. vc sharma (vcsharma.iirs@gmail.com)January 4, 2018 at 12:36 AM

    Hi Chris,
    Why my 1D and 2D Depth, Velocity and WSE graphs are different in capturing maximum value (maximum values occurring in deferent dates for 1D&2D for an event) and what are the other reasons for this variations between 1D and 2D. Kindly provide the answer as soon as possible.

    ReplyDelete
  54. Dear Mr Goodell,

    I made a very simple full 2d model of a channel having 0.002 average slope. First of all I have drawn a 2d flowarea all around the channel and then I've introduced breaklines inside the 2dflowarea as well as boundary conditions at the inflow (flow hydrograph) and at the outflow (normal depth 0.0002). Unfortunately, even if the model runs (computation time: 30 s - hydrograph output: 15 min - mapping interval: 12 h - detailed output: 12h) when I check the water depth among the simulation results I only find one profile (max flow tipically). I've noticed that the stored map generation doesn't work!
    Your advice will be very appreciated!!! :)
    Thanks in advance

    ReplyDelete
    Replies
    1. How long is your simulation? Your mapping interval is 12 hours. If your simulation is less than 12 hours, you'll only get the max profile. Try using a much smaller mapping output interval.

      Delete
    2. For a stimulation short as yours, try a 30 minute interval. Your computation interval is a little long, try 10 seconds or less to check that your solution is stable.

      Delete
  55. Hi Chris.
    I am coming back to your original 2D post to see if you can provide any guidance on a 2D approach to surface water flooding using rainfall. I know this requires the calculation of effective rainfall (less storage/losses) assigned to a single mesh area (domain) given the absence of a hydrological routine in Hec-Ras.

    To join different 2D mesh areas requires the use of a SA/2D Area Connector. This then has a requirement that the one mesh boundary be higher than the other mesh boundary along the length of the connection (as I understand)

    My question is - do you know how a 2d model could be developed which uses hydrological homogeneity (according to soils/land-cover) to define different mesh areas rather than having to divide up the mesh hydraulically to enforce the necessary higher and lower elevations?

    ReplyDelete
    Replies
    1. Sounds like a fairly simple task in GIS to develop 2D areas based on soils/land cover. Then bring those 2D areas into RAS and you're ready to go. Also, the SA/2D area connector requirement that you're thinking of is the weir/embankment crest must be equal to or higher in elevation than the lowest point in the closest cell to that station/elevation point-on both sides. There is no requirement for one 2D area boundary to be higher than the other at a SA/2D Area connection.

      Delete
    2. Thanks Chris. I'll give that a go. I'm really enjoying Hec-Ras 2D's capabilities/visualisation.

      Delete
  56. Hola Chris! Muy buena publicación, tengo un modelo de un cauce de montaña en donde para un caudal pico de 2000m3/s desborda hacia la zona de un campimg, y estuve teniendo distintos resltados según el tamaño de celda que usaba para la malla 2D. Estimo que la diferencia fue producto de no alinear las celdas con la zona del desborde con una "breakLine" y la fragmentación de la zona con menores caudales es por utilizar una malla estructurada. Modificaré la geometría para ver si me aproximo más a la realidad. Saludos!!!

    ReplyDelete
  57. Hola Florencio. Gracias! Yes, breaklines and cell size both can have an impact on the results. It's important to capture barriers to flow with breaklines to prevent leaking. But also a good idea to do a sensitivity analysis on cell size. Buena suerte!

    ReplyDelete
  58. Hi Chris!

    What would be the best way, in your eyes, to model a storage area that is inside a 2D area?
    The output I require is the storage area graphs over time.

    Thank you!

    ReplyDelete
    Replies
    1. Hi! In the current version of HEC-RAS you cannot have a storage area inside of a 2D area. However you can get close by using the “PAC-MAN” approach. Essentially you make a 2D area with an open slot on one side that leads to your interior Storage Area. Then connect up the storage area with the 2D area using an SA/2D area connection.

      Delete
  59. Hi Chris!

    What would be the best way, in your eyes, to model a storage area that is inside a 2D area?
    The output I require is the storage area graphs over time.

    Thank you!

    ReplyDelete
    Replies
    1. Right now, in the current version, you can use the "pacman" method. Give your 2D area a narrow empty slot that extends from the boundary to the location of the storage area. Best place for the slot is a location where you don't expect a lot of flow to cross.

      Delete
  60. My question is – Could different connections be joined to the same cell interface? Things like a lateral structure 1D/2D and a SA/2D Area Connection.

    ReplyDelete
    Replies
    1. Each cell face can only have one connection to it.

      Delete
  61. My question is – Could different connections be joined to the same cell interface? Things like a lateral structure 1D/2D and a SA/2D Area Connection.

    ReplyDelete
    Replies
    1. I doubt it. Usually RAS is not too keen with different elements sharing the same cell face. But you could give it a try and see what happens.

      Delete
  62. Hi Chris,

    Nimi here. I am new to the HEC RAS 2D version. My challenge is that the model is refusing to compute a mesh . I have defined the 2D flow area and defined the Bc conditions. Its still at "current contains no computation points".

    Does this have to do with the projections, I have change projections. Have you encountered this? Please what should I do?

    ReplyDelete
    Replies
    1. It’s likely you have a cell violation somewhere in your mesh. Look for red dots and then adjust your mesh boundary or cell points to remove the error. The manual discusses what violations are for 2D areas.

      Delete
  63. Hi Chris,

    Nimi here. I am new to the HEC RAS 2D version. My challenge is that the model is refusing to compute a mesh . I have defined the 2D flow area and defined the Bc conditions. Its still at "current contains no computation points".

    Does this have to do with the projections, I have change projections. Have you encountered this? Please what should I do?

    ReplyDelete
    Replies
    1. Should have nothing to do with your projection. I wonder if you have some cell violations that is preventing RAS from drawing the mesh. Make sure you have a nice smooth boundary without any sharp angles or narrow protrusions. That's the best way to avoid cell violations. if it's not that, I'm not sure what is wrong.

      Delete
  64. Hi, anyone knows if it's possible to change proxy settings in HECRAS? The network at work has proxy restrictions and they need to change the settings in HECRAS so that it can talk to the network and connect to internet. Otherwise the web map layers won't download and I am not able to see the terrain in the geometry editor. Any insights are appreciated.

    ReplyDelete
  65. Hello chris, i have some problems to ru n simulation. There are some errors were listed i make some tributaries

    Water surface tolerance outside of range 0.0000001 to 0.06
    Storage arean tolerance outside of range 0.0000001 to 0.06
    Boundary at SA:2d_area BCline :main river Time series data ends beforw the end of simulation

    ReplyDelete
  66. Good Mr. Goodell, you see I am having problems with my 2D unsteadyflow analysis in ras. flood water is stuck on the inlet of the river. what could be a possible solution for this? I really do need your help ASAP.

    ReplyDelete
    Replies
    1. Hard to say based on your description. Can you elaborate a little more? Maybe include an image?

      Delete
  67. Hi Chris i am facing almost the same issue. My model runs without error. However, the flow stuck to the upstream. I mean, the upstream forcing does not flow within the River

    ReplyDelete
    Replies
    1. All I can suggest is making sure your inflow boundary is properly set. Or if it's a 1D/2D boundary, make sure it is properly connected. You should see a red and black striped line on the connection if it is properly connected.

      Delete
  68. I would like to have sample of grid computation in HEC-RAS. Will you please help me Chris?

    ReplyDelete
    Replies
    1. I would need more information before I can help you on this...

      Delete
  69. Hi Chris, It says perimeter polygon error while generating the mesh. Why is it so?

    ReplyDelete
    Replies
    1. Make sure you don't have sharp angles or narrow protrusions in your mesh perimeter. Also, you might try using smaller cell center spacing.

      Delete
  70. hi chris
    i am not able to see land cover map in ras mapper and geometric window after importing it in proper shape file. what could be the error please help me out. i am working on it since last week but not able to find the solution.

    ReplyDelete
  71. hello ...i have a serious problem in analyzing the uncertainty of the manning roughness parameter....
    Can I make an uncertainty analysis with the new version of Hec-Ras 2D?
    For example, for a 1000 different values of Manning roughness coefficients that are randomly selected from a given interval, run the program?
    Since we import the land use map into the program, is it possible to write code that links to the software and changes the roughness coefficients?
    I really need help and nobody knows....thanks

    ReplyDelete
  72. hello ...i have a serious problem in analyzing the uncertainty of the manning roughness parameter....
    Can I make an uncertainty analysis with the new version of Hec-Ras 2D?
    For example, for a 1000 different values of Manning roughness coefficients that are randomly selected from a given interval, run the program?
    Since we import the land use map into the program, is it possible to write code that links to the software and changes the roughness coefficients?
    I really need help and nobody knows....thanks

    ReplyDelete
  73. hi Dear,
    i want to run a 2D simulation on HEC RAS (steady flow ) it is possible??

    ReplyDelete
    Replies
    1. Yes, just run your steady flow discharge as a constant inflow hydrograph in the unsteady flow editor. Run it long enough so that the solution settles out.

      Delete
  74. Hi Chris! Is it possible for HEC-RAS to read shapefiles as an obstruction or building? If not, how can i add multiple buildings to HEC-RAS so that overland flow wont pass through the areas where buildings are supposed to be

    ReplyDelete
    Replies
    1. Hi Milo- Yes...sort of. What I like to do is for larger buildings, bring them in as part of the land classification shape file and then give those buildings a very high n value (10 or 100). Essentially, you are eliminating conveyance through the building, but allowing for water to store there. Another option is to lift the terrain where the buildings are, but that takes a little more effort and doesn't account for flow storage in the buildings.

      Delete
  75. Hello Everyone

    Running HecRAS 2D for a domain which do have multiple inlet boundary conditions carrying low flows. Model got unstable and throwing a message of WSLE/ Converge error. The same model setup is fine in high flow conditions. Please let me know what is the best parameter setting while running model at low flows?

    ReplyDelete
    Replies
    1. Increasing Manning's n values will help. Also, you may need smaller cells, particularly if your terrain is relatively steep. And smaller cells means smaller timesteps too.

      Delete
  76. Chris, I'm running a 2D model of a dam breach in HEC-RAS 5.0.7.. I have a terrain model of the area I'm modeling that includes topography of the dam in question. The likely mode of failure is piping through the dam. When I run the model I get an error "The SA 2D connection at Dam has a weir breach lower than the cells they are connected to for 2D area Analysis A. Do I have to remove the dam topography and return the topography to "pre-dam" conditions in order to model the dam breach? I'm thinking because I have the topography of the dam in the terrain model, width of the "weir" in the model (aka dam in real life that I'm running the breach model on) doesn't line up with the toe of slope (for various reasons). I'm thinking this is the root of the error, but I'm not sure. It is going to take a bit of work to remove the dam from the topography, but maybe that is what needs to happen. Hopefully you can provide some guidance. Thank you in advance. Marc

    ReplyDelete
    Replies
    1. Hi Marc-

      Best way to handle this is to have two 2D areas, one upstream of the dam and one downstream of the dam. Set the boundaries of your 2D areas at the toes of the dam, so that the dam embankment is not part of the 2D areas. Then put your 2D area connection between the two 2D area and connect it up. The other benefit of this is that you can start with two separate initial water surface elevations (one for the reservoir and one for the downstream reach) instead of one.

      Delete
  77. Hi Chris,
    I have two general questions related to the computational processes within HEC-RAS:

    1. My basic understanding is that one water surface elevation is assigned to each cell center per time step based on the elevation-volume relationship for the cell and the geomorphic and hydraulic property tables of the cell faces. The HGL is then calculated by connecting adjacent cells WSE, and that is used to determine flow transfer between cells and other hydraulic variables. My question is that if I have a riffle-pool system and I put a break line at each facet (top and bottom of each riffle and pool), then the cell faces will align with these breaks, but since the HGL is calculated between cell centers and not cell faces, the HGL for low flows will not be representative of the actual facet slopes and would under estimate hydraulic variables. Is that correct? And if so, is there a way to account for this?

    2. How are the other hydraulic variables calculated, such as shear stress? Does it take into account the underlying terrain, or is it based on a gradient function? I just know that a single cell can have multiple shear stress values and didn’t know how it was calculating it.

    Thank you very much for your time and help.
    -Jeremy

    ReplyDelete
    Replies
    1. Jeremy-
      1. I think you get it. But don't think of the HGL as a continuous line connecting cell centers. While this is closer to reality, RAS doesn't compute this way. RAS technically computes a "stair-stepped" HGL, since each entire cell only get's one water surface elevation. In computing the velocity of water through a face, it uses the face profile and the face's other hydraulic properties, but there is no "sloping" line from cell center to cell center. Confused? Me too! JK, but it is a different way of thinking about this. RAS tries to overcome the "stair-step-ness" of its solution by providing options to render the output with slopes (Render-mode options). That doesn't change the way the computations are done. To your example: Yes, with a coarse mesh, the resulting "HGL" will be stairstepped, not representative of the pool-riffle terrain. However, smaller cells will help to calculate a more "true" HGL.
      2. RAS computes a water surface elevation for a cell and an average velocity at each face. That's it. All the other output parameters (e.g. shear stress) come from these two output values. Shear stress is Unit Wt Water * Hydraulic Radius * Slope. This is computed at each face as an average, using an average hydraulic radius (generally, but not always). Then the values on the face points are determined based on some weighted average of the average face values. When you hover over the shear stress map, values you get in between faces and along the face are linear interpolations from the face points. If nothing else, remember that during the simulation, RAS only computes water surface elevation for the cell, and average velocity for the face. All other output values are backed out during post-processing using other equations and then interpolated to fill in the map.

      Delete
  78. Hi Chris,

    Thank you for the insights. I have one follow up question. How is the slope calculated that is used to determine the average velocity at each cell face? I understand the stair stepped HGL concept that provides a delta WSE between cells, but what distance is used to determine the slope? Is it the distance between cell centers? It doesn't seem like there would be a distance between cell faces that could be used.

    Thanks,
    -Jeremy

    ReplyDelete
    Replies
    1. Average velocity at each face is determined through the solution of the Conservation of momentum equation both in x and y directions. The distance used is dx and dy, or the x and y component of the length between cell centers.

      Delete
  79. Hi Chris,
    i am about to simulate a dam breach between storage area and 2D area. thi is the error i received:
    HEC-RAS Error - Incomplete data, the following errors were found:
    Plan file: C:\Users\ambas\Documents\Shiroro Dam Break folder\Shiroro2D.p01
    Geometry file: C:\Users\ambas\Documents\Shiroro Dam Break folder\Shiroro2D.g01
    Flow file: C:\Users\ambas\Documents\Shiroro Dam Break folder\Shiroro2D.u01

    SA/2D Connection: Dam
    There is an inconsistency on the information about flow direction over this structure. The positive flow convention for a
    structure is for stationing to increase going from left to right while looking downstream (like XS's). The centerline's
    direction is opposite what would be expected from the user entered 'From' and 'To' connected storage areas (or 2d
    flow areas). To fix this problem, you need to either:
    Swap the 'From' and 'To' connected storage area (2d flow area) names.
    or
    Reverse the centerline stationing (and likely the weir profile data as well).
    Please help!

    ReplyDelete
    Replies
    1. As the error message states, swap the From and To locations on your Connection.

      Delete
  80. Hi Chris,
    Thank you for a great HEC-RAS blog. what is a maximum number of points HEC-RAS_2D can handle? If you have any info, would be great.

    Thanks,
    Ben

    ReplyDelete
  81. Hi chris,
    If I am using two updtream that meet at a junction and ran as a single river with the downstream at end, how will you determine the EG slope for distributing flow of flow for each U/s and normal depth for d/s condition?

    Thank you,
    Indira

    ReplyDelete
  82. Hello I keep getting the same error:

    There is an inconsistency on the information about flow direction over this structure. The positive flow convention for a structure is for stationing to increase going from left to right while looking downstream (like XS's). The centerline's direction is opposite what would be expected from the user entered 'From' and 'To' connected storage areas (or 2d flow areas). To fix this problem, you need to either:
    Swap the 'From' and 'To' connected storage area (2d flow area) names.
    or
    Reverse the centerline stationing (and likely the weir profile data as well).

    I tried both these fixes and I still get the same issue. Help

    ReplyDelete
    Replies
    1. You might have to just delete the structure and redo it (making sure to draw from left to right, looking downstream). Seems redundant, but I've had to do this before to get past this error message.

      Delete
