Flow spike after peak of dam breach floodwave.

Written by Chris Goodell, P.E., D. WRE | WEST Consultants
Copyright © RASModel.com. 2012. All rights reserved.

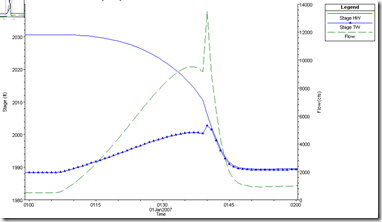

Just ran into an interesting phenomenon.  I was running a dam breach model with fairly typical breach parameters and piping failure mode.  After the peak of the breach hydrograph, there appeared a mysterious “spike” as shown in the figure below.

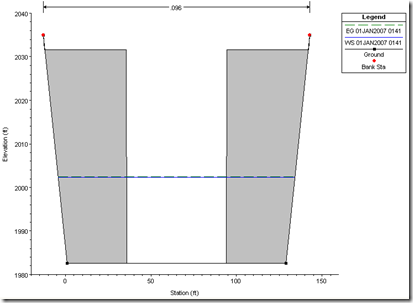

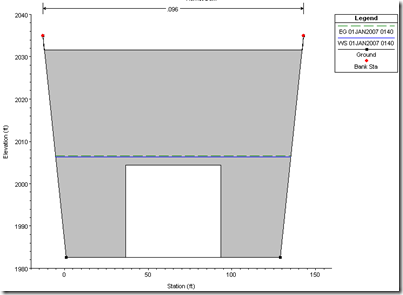

This happens to be right at the same time the flow through the developing breach becomes freeflowing (as opposed to pressure flow through the breach opening) as shown in the next two figures.
This is the point at which RAS switches from using the orifice equation to the weir equation.  The breach editor allows you to specify a breach weir coefficient.  By lowering this weir coefficient, you can get rid of the spike and have a smoother hydrograph.  I'm not concluding that this spike is incorrect. In fact, it is quite possible that you do experience a real surge when the breach collapses in and goes freeflowing.  In that case, you may find the spike acceptable.  Whichever result you use, be sure you can back it up with sound reasoning.  Given the extreme uncertainty in both breach weir coefficients and piping coefficients, it's probably best that you run a sensitivity analysis to gain a full understanding ot the effects these coefficients have on the dam breach hydrograph.

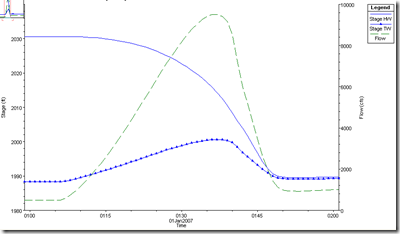

Breach weir coefficient = 3.0
Breach weir coefficient = 2.0
Breach weir coefficient = 1.0
Looks like a breach weir coefficient of 1.0 does the trick.
